Alexandria marine port
Executive Summary

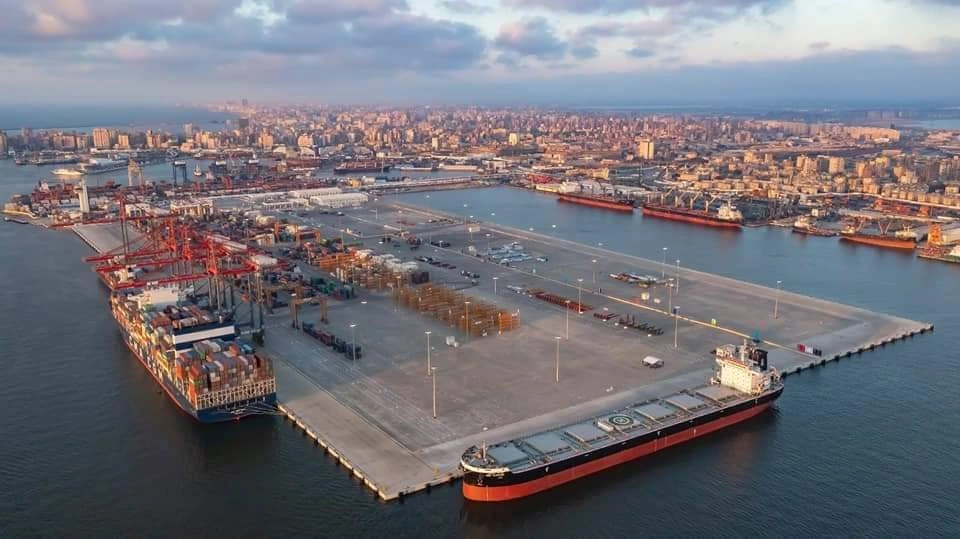

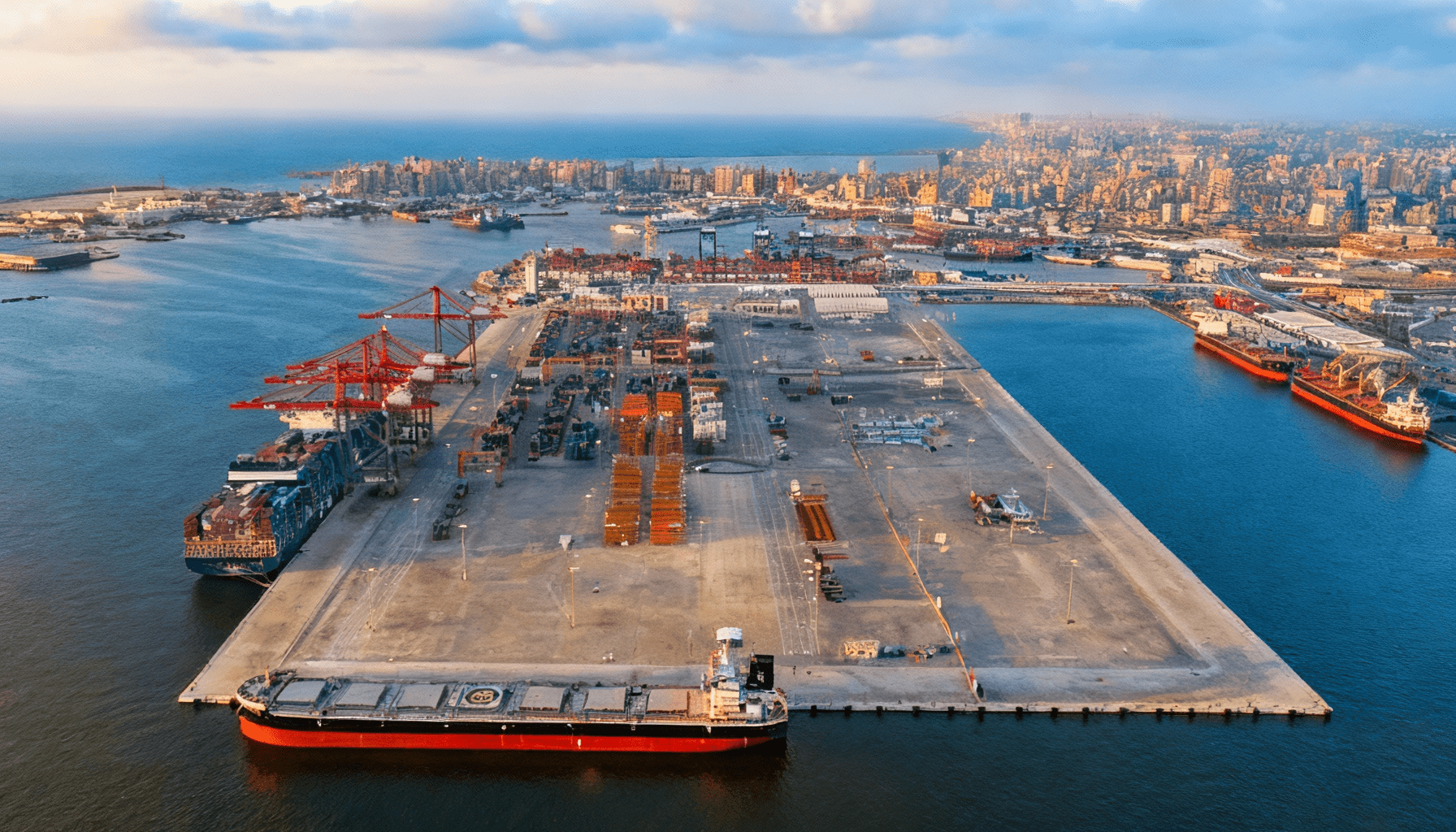

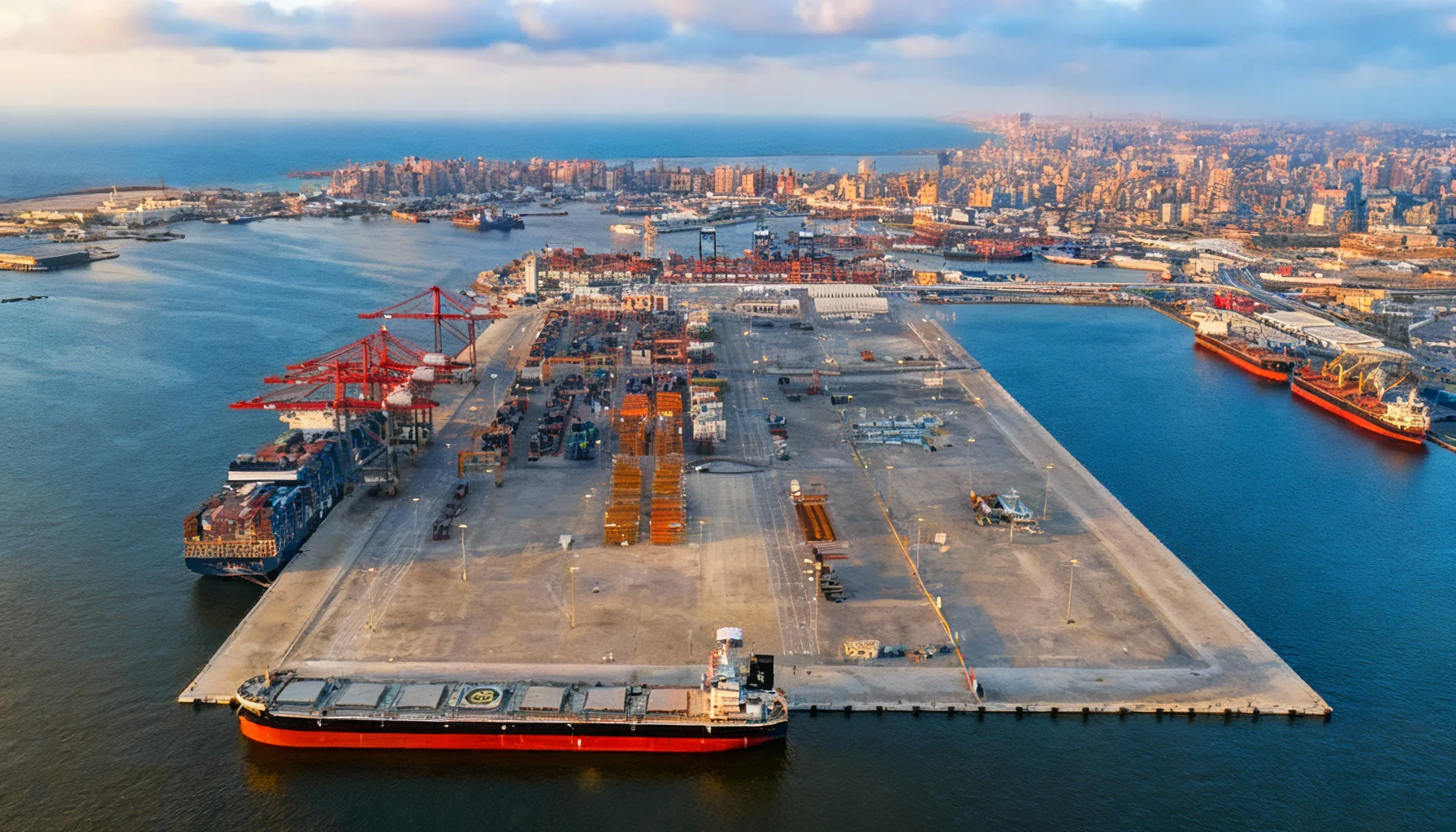

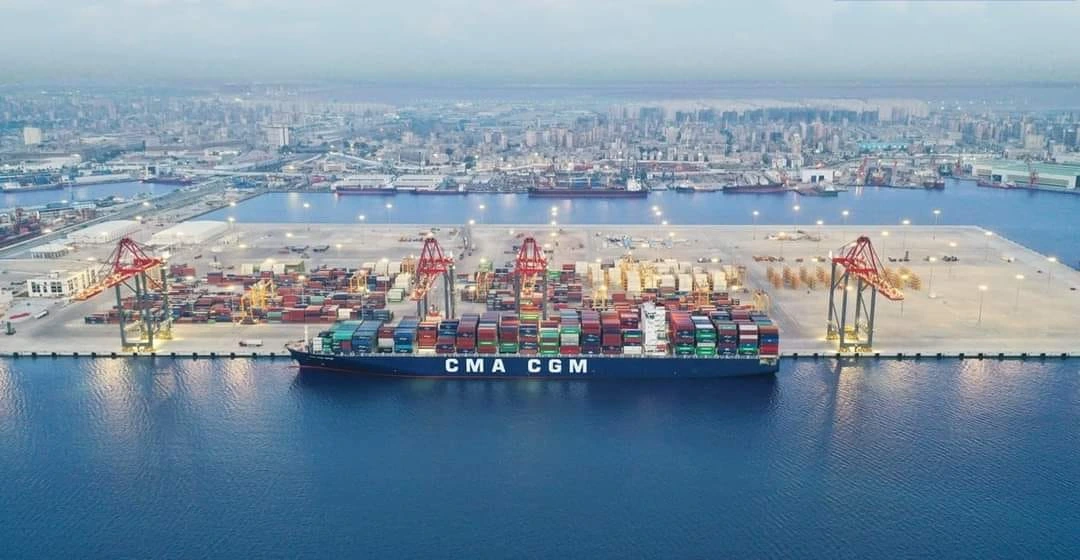

In 2020, the TMT Tahya Masr Multi-Purpose Port Quays (Berths 55–62) project was executed in Alexandria for EGMPT – Egyptian Group for Multi-Purpose Terminals.
The project involved large-scale reclamation, advanced soil improvement techniques, and the construction of high-capacity quay walls and terminal infrastructure to support multi-purpose port operations.
Project Description
The project scope included extensive marine, civil, and infrastructure works, highlighted by the following key components:
-

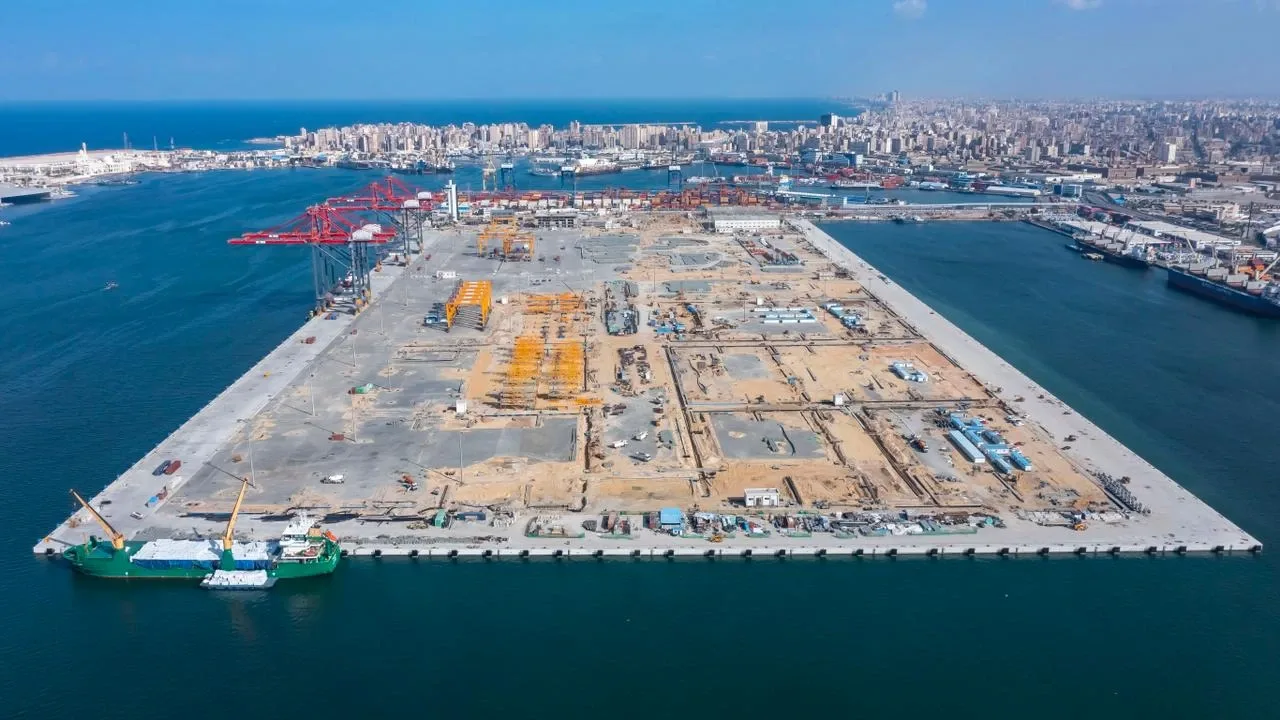

Terminal Area Reclamation
- Area: 550,000 m²
- Total reclamation volume: 10,300,000 m³
-
Soil Improvement Techniques
- PVD (Prefabricated Vertical Drains)
- VC (Vibro Compaction)
- RIC (Rapid Impact Compaction)
-

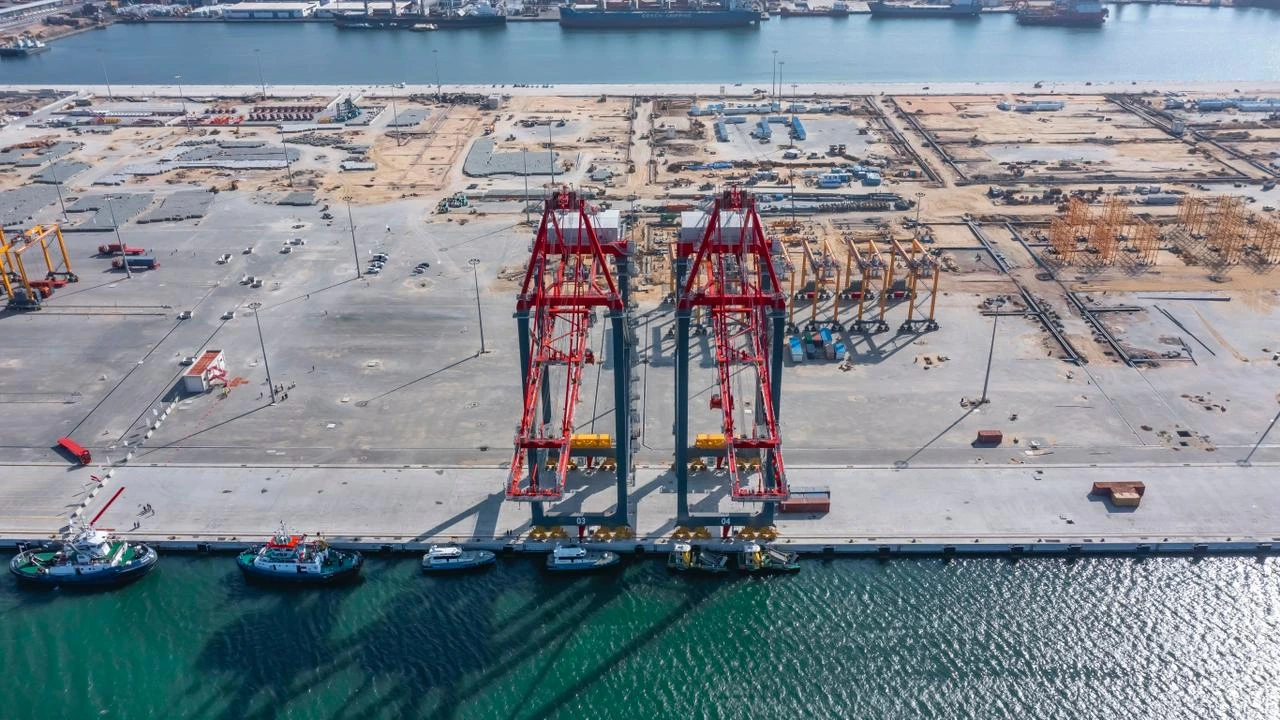

Quay Wall System
- Type: Diaphragm Wall
- Length: 1,250 m
- Design draught: 14.5 / 17.0 m
-
Foundation Works
- Bored piles: 1.5 m diameter
- Barrettes: 2.8 m width
- Total piling works: 21,000 linear meters
-
Concrete Works
- Total concrete volume: 200,000 m³
-

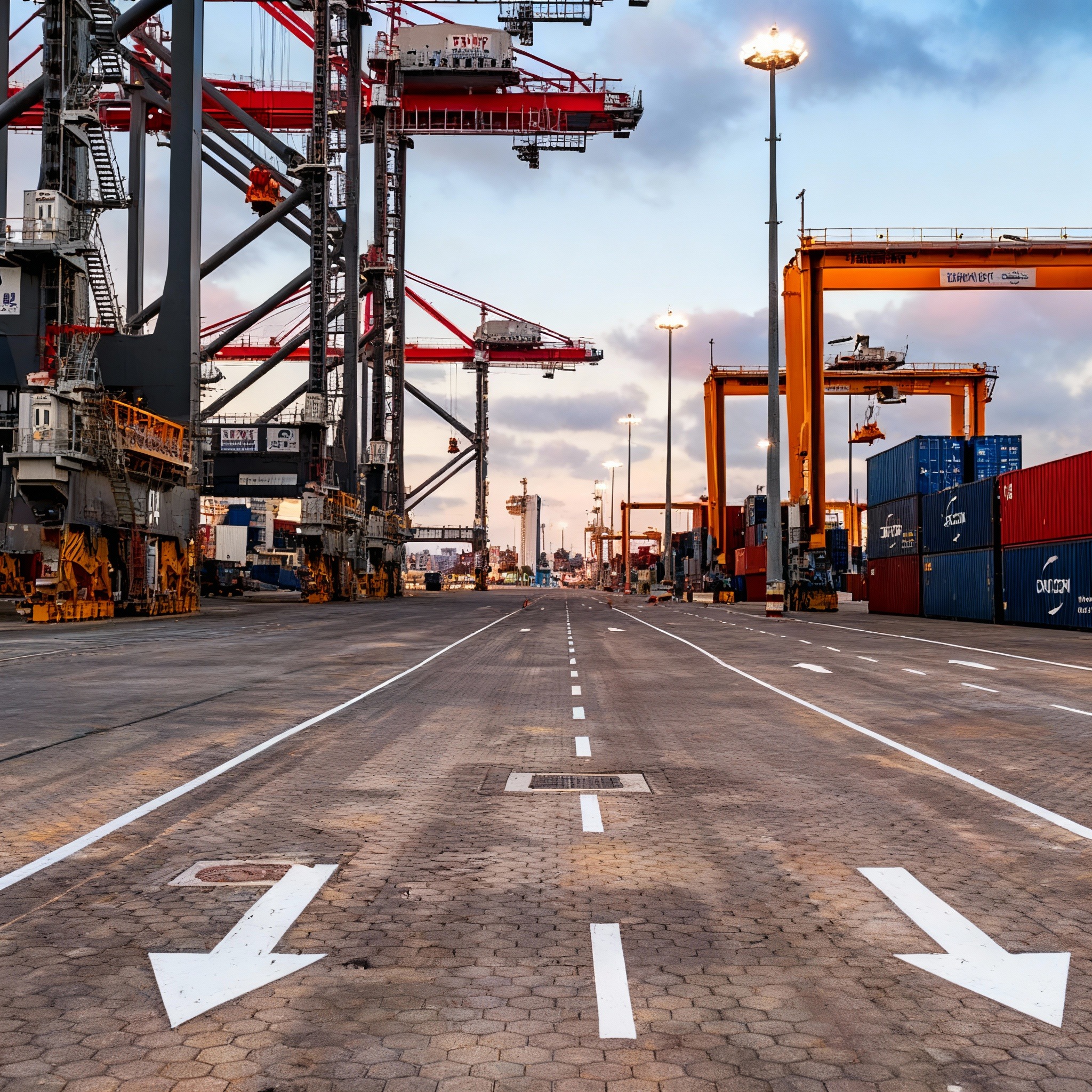

Pavement Works
- Paved area: 560,000 m²
- Built-up Area: 10,000 m²
Client Challenge
The project required the execution of massive reclamation and soil improvement works to create a stable foundation for port infrastructure, while constructing deep-draught quay walls and terminal facilities within a tight schedule. Coordinating multiple soil improvement techniques, piling systems, and marine works across a large terminal area demanded precise planning, high productivity, and strict quality control.
